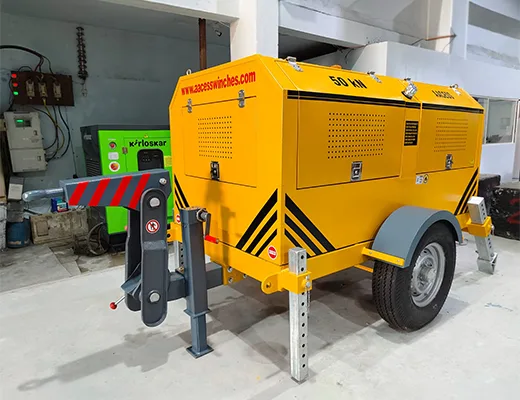

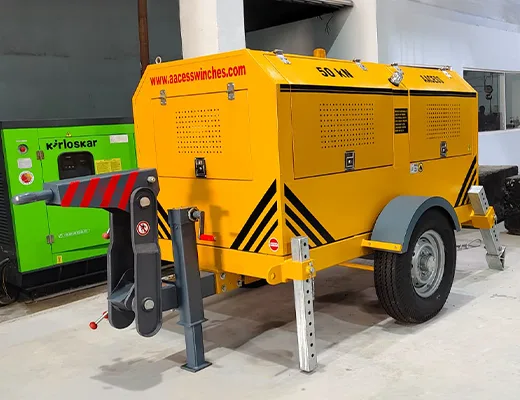

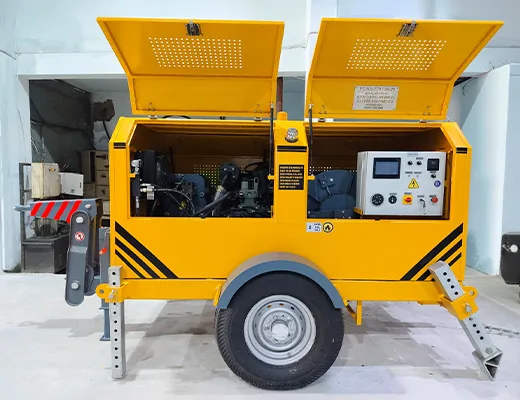

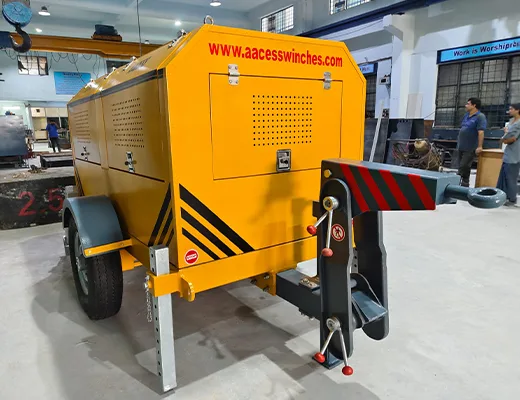

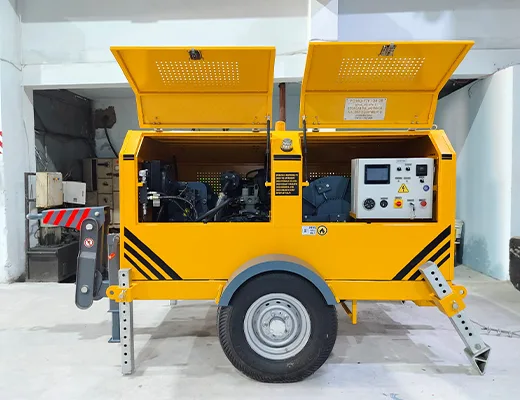

Cable pulling capstan Winch is an equipment primarily used for laying of underground cables, by transferring the cable from the cable drum to the trench by the way of pulling the cable. The unit is a self-powered unit which is powered by a high-speed Diesel engine which runs the hydraulic pump and the motor. The unit has a pulling Capability of 5 Tons and is designed to a pull any length ranging from 250 mts to 1000 mts.

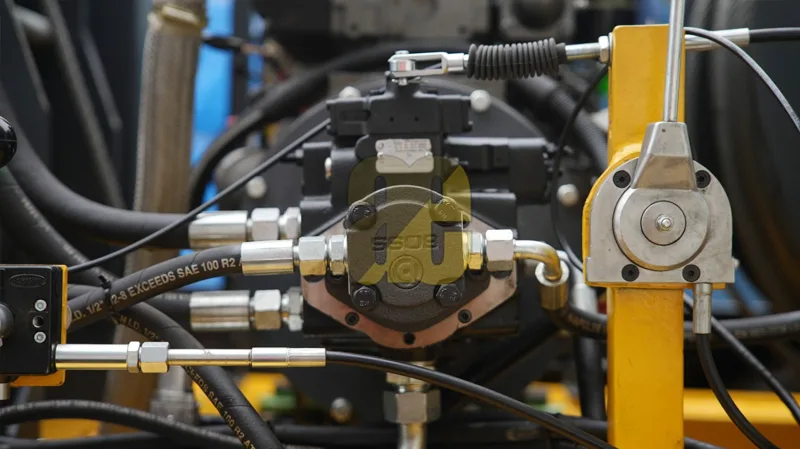

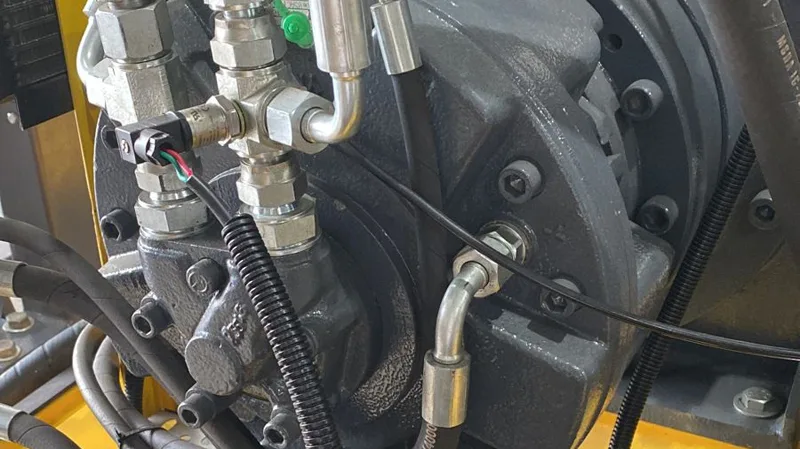

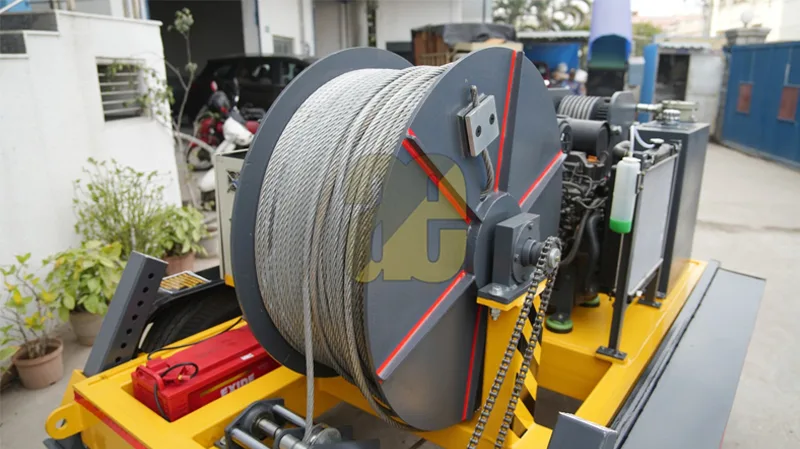

A cable pulling capstan winch which has a rope drum having designated length and diameter wire rope on it and this rope is taken out through double capstan unit and is guided out to the target through pulleys. This unit is powered by diesel engine which drives a closed loop hydraulic pump, which in turns develops oil pressure and supplies this oil to the hydro motor which drive the double capstan via a Gear box there by pulling wire rope.
Download BrochureYanmar - JAPAN
Bondioli Pavesi / Kolben -ITALY
SAI - ITALY
Galvanised Wire Rope - Usha Martin with 12mm Dia
AACESS

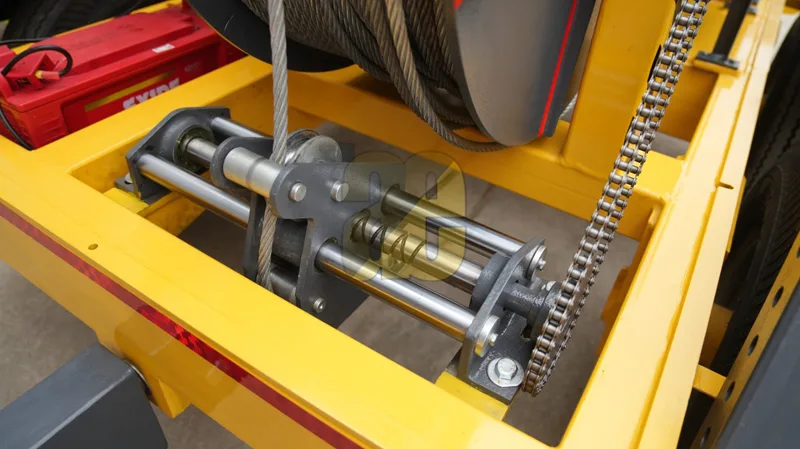

Diamond Screw Self Adjusting - AACESS

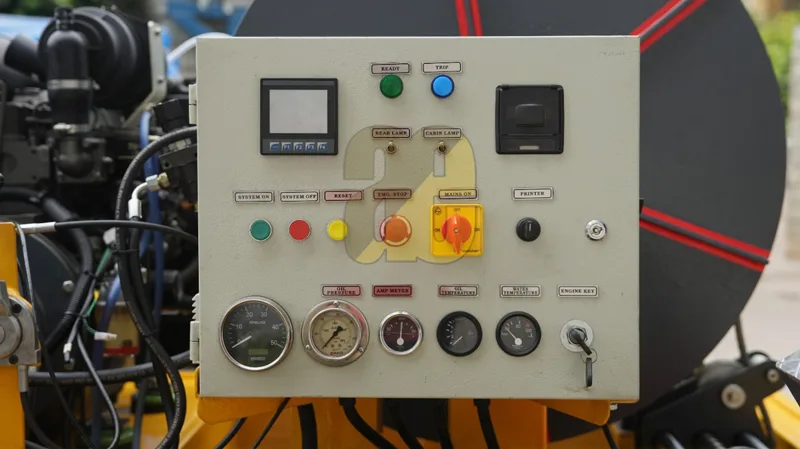

PLC/ HMI - Siemens with Printer

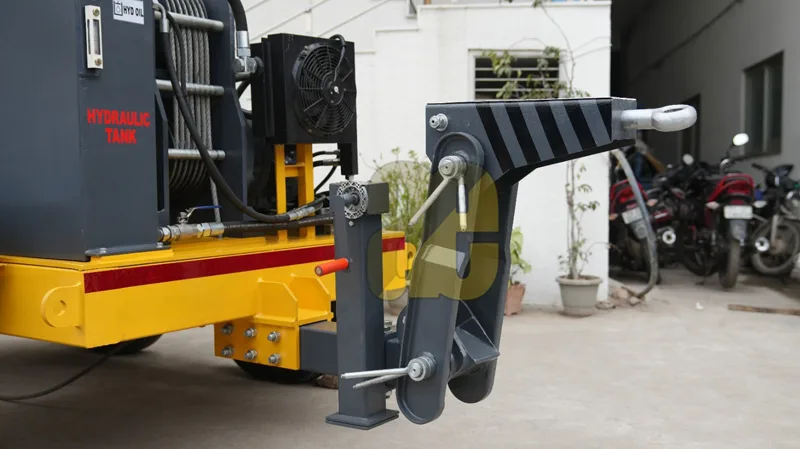

Height Adjustable
3.75M (L) x 1.75M (W) x 1.5M (H)

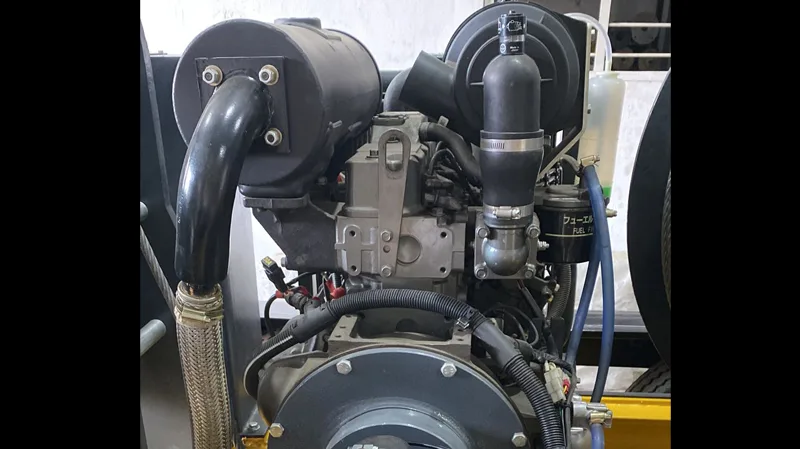

Three Cylinder Turbo Charged Diesel Engine
36HP
18 mts / min
Water Cooled
3.3 lit/hr
2.5 lit/hr
12V
Special Heat Exchange
2 No's
provided
provided
Max 210 Bar
Hydraulic Oil Cooler
210mm
Double
