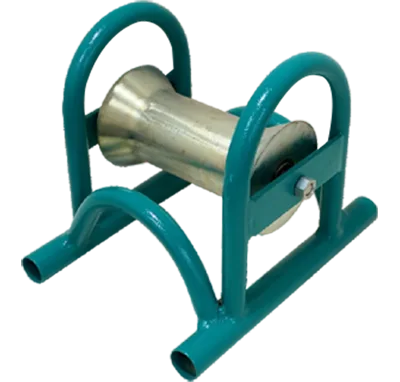

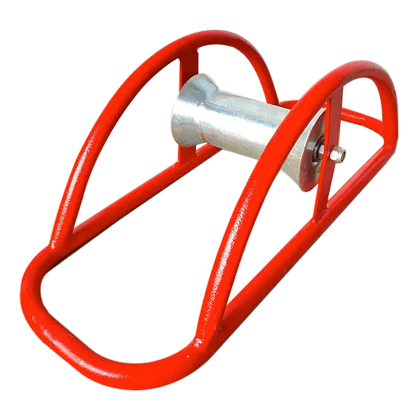

Cable Roller Straight
- Made of Heavy-Duty Steel
- Used as a bridge roller for laying cables in trenches
- Maintenance free, Waterproofed, rubber-sealed ball bearings
- Can be easily placed over existing cable in the trenches
- Cable capacity 155 m
- Carrying Load 300 Kg
Finish : Electro Galvanized / Hot Dip galvanized.
| Product Code | AE STR 001 |
|---|---|
| Length (mm) | 300 |
| Width (mm) | 240 |
| Height (mm) | 250 |
| Weight (Kg) | 3.80 |
| Construction | Medium Duty |
As manufacturer, we will endeavor to make the customer specification to suit your individual requirements
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements.
Cable Roller Straight – wide
- Made of Heavy-Duty Steel
- Maintenance free, Water proofed, rubber sealed ball bearings
- Can be easily placed over existing cable in the trenches
- Cable capacity 220 mm
- Carrying Load 300 Kg
- Used as a bridge roller for use in most cable laying applications
| Product Code | AE STR 003 Roller 10" | AE STRW 003 Roller 10" |
|---|---|---|
| Length (mm) | 400 | 400 |
| Width (mm) | 285 | 258 |
| Height (mm) | 250 | 250 |
| Weight (Kg) | 5.5 | 6.0 |
| Finish | Electro Galvanized | Hot Dip Galvanized |

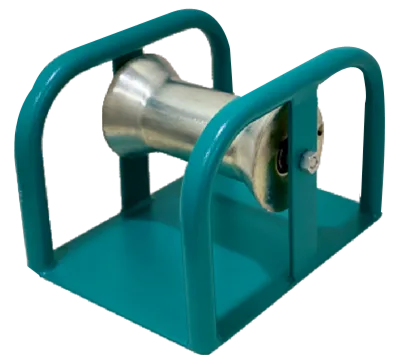

Straight Roller with Ground Plate HD
- Made of Heavy-Duty Steel construction with solid bottom plate
- Easily used on sand and soft ground conditions
- Maintenance free, water proofed, rubber sealed ball bearings
- Heavy duty with cable capacity of 0155 mm
- Carrying Load 300 Kg
- Heavy duty bridge style cable roller for use in most cable laying applications
| Product Code | AE SPG 005 | AE STRW 003 Roller 10" |
|---|---|---|
| Length (mm) | 400 | 400 |
| Width (mm) | 245 | 245 |
| Height (mm) | 200 | 200 |
| Weight (Kg) | 5.5 | 5.7 |
| Finish | Electro Galvanized | Hot Dip Galvanized |
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements.

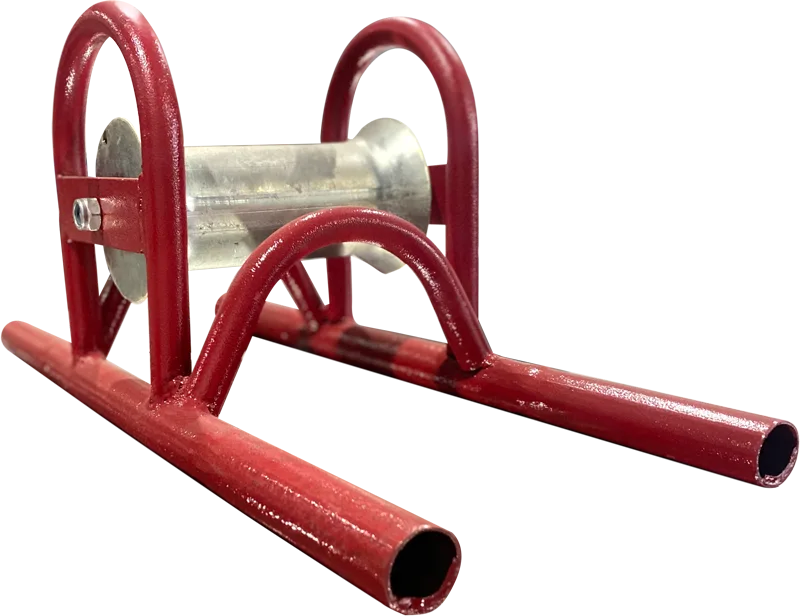

Straight Rollers with long Base
- Made of Heavy-Duty Steel Construction
- Maintenance free, Water proofed, rubber sealed ball bearings
- All tubes are continuous leaving no sharp edges
- Cable capacity 155 mm
- Carrying Load 300 Kg
- Straight line cable roller for use in most cable laying applications
| Product Code | AE SLB 007 | AE SLB 008 | AS SLB 009 | AE SLB 010 |
|---|---|---|---|---|
| Length (mm) | 580 | 580 | 580 | 580 |
| Width (mm) | 220 | 220 | 285 | 285 |
| Height (mm) | 290 | 290 | 290 | 290 |
| Weight (Kg) | 5.50 | 6.0 | 6.00 | 6.50 |
| Finish | Electro Galvanized | Hot Dip Galvanized | Electro Galvanized | Hot Dip Galvanized |

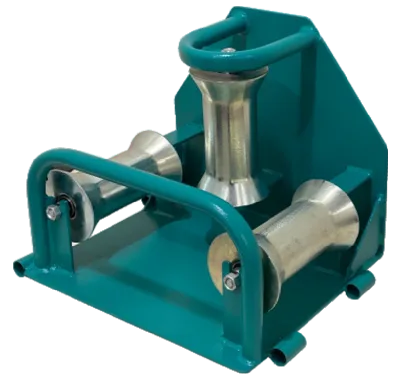

Angle Rollers Double
- Heavy-Duty Cable Roller
- Made of Heavy-Duty Steel Construction
- Can be used as corner Roller
- Stake Pins are provided upon request
- Maintenance free, Water proofed, rubber sealed ball bearings
- Cable Capacity of 076 mm Designed for taking the heaviest cables around difficult corners and bends
| Product Code | AE ADR 011 | AE ADR 012 |
|---|---|---|
| Length (mm) | 225 | 280 |
| Width (mm) | 300 | 225 |
| Height (mm) | 280 | 300 |
| Weight (Kg) | 6.00 | 6.50 |
| Construction | Electro Galvanized | Hot Dip Galvanized |
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements
Triple Corner Roller
- Designed to safely Guide Cable Corners
- Made of Heavy-Duty Steel Construction
- Can be Linked together with stake Pins
- Maintenance free, Water proofed, rubber sealed ball bearings
- Cable Capacity 155 mm
- Carrying Load 300 kg
Finish : Electro Galvanized/ Hot Dip galvanized.
| Product Code | AE TCR 013 | AE TCR 014 | AE TCR 015 |
|---|---|---|---|
| Length (mm) | 400 | 400 | 400 |
| Width (mm) | 300 | 300 | 300 |
| Height (mm) | 315 | 315 | 315 |
| Weight (Kg) | 13 | 14 | 15 |
| Construction | Medium Duty | Heavy Duty | Super Heavy Duty |

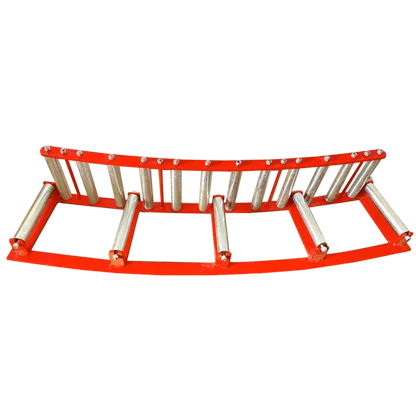

Corner Bend Roller – Heavy Duty
- Designed to safely Guide Cable around Corners
- Made of Heavy-Duty Steel Construction
- Can be Linked together with stake Pins
- Maintenance free, Water proofed, rubber sealed ball bearings
- Designed for taking the heaviest cable around corners and bends
| Product Code | AE CBR 016 | AE CBR 017 |
|---|---|---|
| Length (mm) | 1590 | 1590 |
| Width (mm) | 345 | 345 |
| Height (mm) | 300 | 300 |
| Weight (Kg) | 52 | 53 |
| Finish | Powder Coat & Hot Dip Galvanized | Electro Galvanized |
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements
V Guide Ad Support Roller
- Made of Heavy-Duty Steel Construction
- Maintenance free, Water proofed, rubber sealed ball bearings
- V Shaped Roller to lead cable from storage Drum
- Cable is Centralized prior to it being fed into the trench
- This Cable roller can also be used as a pipe Roller
Finish : Powder Coating as RAL 5012 Purple Color & Galvanized.
| Product Code | AE CGR 018 |
|---|---|
| Length (mm) | 1020 |
| Width (mm) | 500 |
| Height (mm) | 490 |
| Weight (Kg) | 17 |
| Construction | Medium Duty |

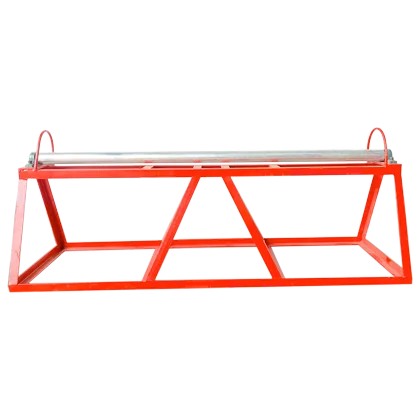

Draw off Roller
- Made of Heavy-Duty Steel Construction
- Maintenance free, Water proofed, rubber sealed ball bearings
- Places in front of the drum
- Used to lead the cable into trench
Finish : Powder Coating as per RAL Grades & Galvanized.
| Product Code | AE DOR 019 |
|---|---|
| Length (mm) | 1060 |
| Width (mm) | 180 |
| Height (mm) | 220 |
| Weight (Kg) | 24 |
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements

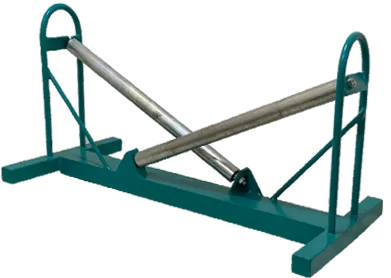

Draw off Roller With Stand/ Step Roller
- Normally as per the draw off roller (See Top Left Picture) but with angled stand.
| Product Code | AE DOR 019 |
|---|---|
| AE DOR 020 | 1800mm (W) x 0.25m (H) 50kg |
| AE DOR 021 | 1800mm (W) x 0.50m (H) 63kg |
| AE DOR 022 | 1800mm (W) x 1.00m (H) 76kg |
| AE DOR 023 | 1800mm (W) x 1.50m (H) 85kg |
| AE DOR 024 | 1800mm (W) x 2.00m (H) 100kg |
| AE DOR 025 | 1800mm (W) x 2.50m (H) 120kg |
| AE DOR 026 | 1800mm (W) x 3.00m (H) 135kg |

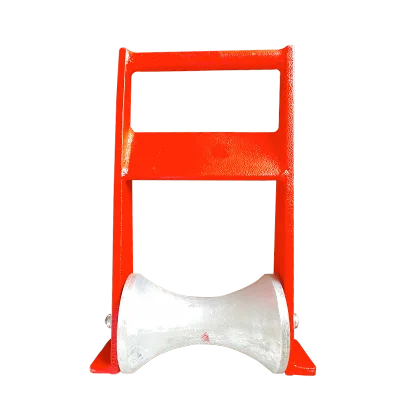

Manhole guide Rollers
- Used at the manhole entrance to avoid damage to the rope and used to guide draw ropes and cable ropes
- Roller made of aluminium and hot dip galvanized frame, running on dust and waterproofed German bearings
| Product Code | AE RO 027 |
|---|---|
| Length (mm) | 300 |
| Width (mm) | 1500 |
| Height (mm) | 150 |
| Weight (Kg) | 3 |
| Description | Manhole Guide Roller with Aluminium Pullery - HDG |
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements

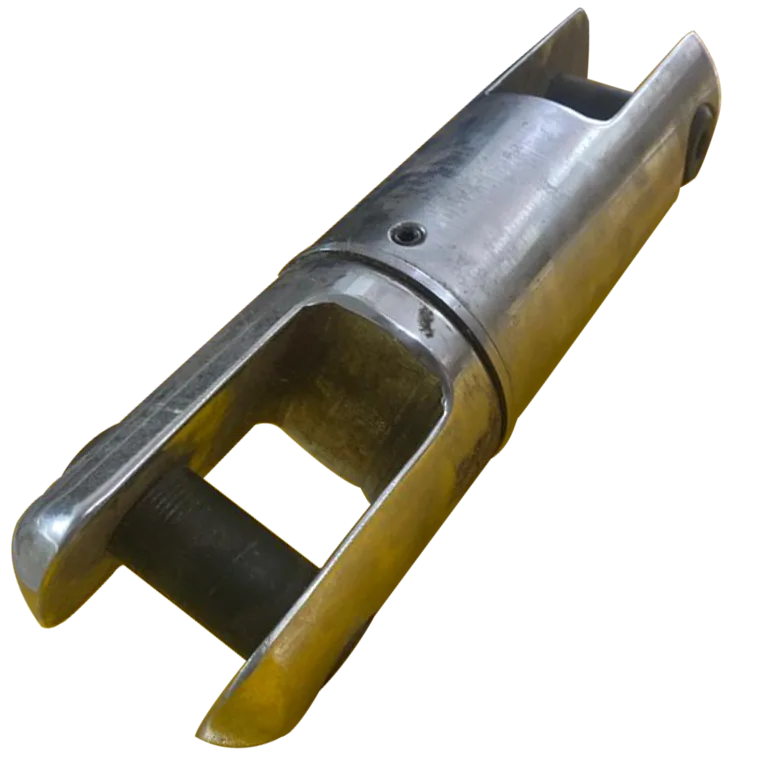

Swivel Link
- Designed Specifically for Underground Cable Pulling applications
- Can handle all types of utility cables
- Precision Machined from high Strength Steel
| Product Code | Working Load | Pin diameter | Overall Length | Overall Diameter | Weight – (KG) |
|---|---|---|---|---|---|
| AS SW 028 | 2 Ton | 10 | 160 | 30 | 0.30 |
| AS SW 029 | 3 Ton | 12 | 165 | 40 | 0.50 |
| AS SW 030 | 5 Ton | 16 | 190 | 50 | 2.50 |
| AS SW 031 | 10 Ton | 19 | 220 | 65 | 4.00 |
| AS SW 032 | 15 Ton | 20 | 220 | 65 | 4.09 |
| AS SW 033 | 20 Ton | 22 | 240 | 70 | 4.50 |
Wire Brush Mandrel Small
- Plastic Bristles with a pulley eye on each end
- Fasily removes sand, grit and other light obstructions from the duct
| Product Code | Description |
|---|---|
| AE BRS 044 | Brush, Plastic bristles 100mm Small |
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements

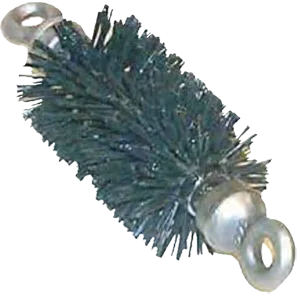

Heavy Duty Wire Brush Mandrel
- Heavy Duty wire brush Mandrel with pulling eyes on each end for removing obstructions from the duct
| Product Code | Description |
|---|---|
| AE BRH 045 | Brush, Plastic bristles 110mm - Big |
| AE BRH 046 | Brush, Plastic Bristles 160mm – Big |
Cable Pulling Lubricant
- A slow drying wax based lubricant with superior friction reducing properties
- This is especially recommended for long pulls, high Shear situations and multiple bend pulls
- It leaves a lubricating film after its water has evaporated
- Clings to cable through water
- Does not separate in extreme Hot or cold temperatures
- Non Staining, Slow drying
| Product Code | Description |
|---|---|
| AE LU 047 | Lubricant, WX – 640 Polywater |
| AE LU 048 | Lubricant, MI - 640 Polywater |
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements

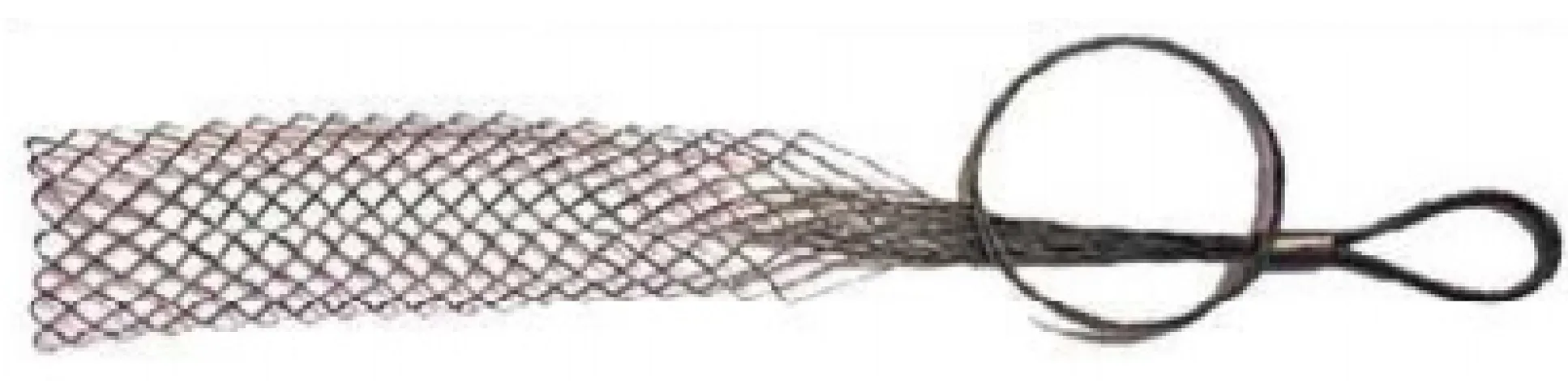

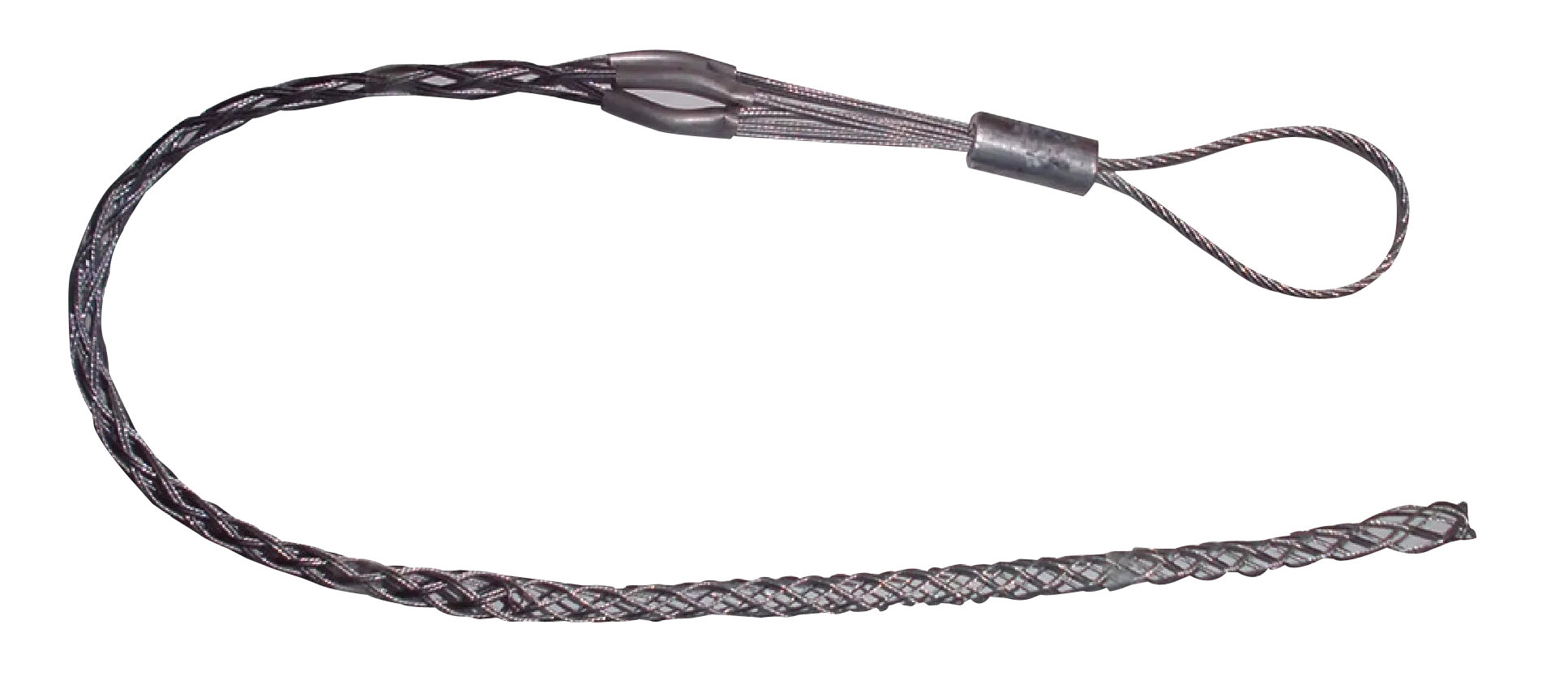

Single Thimble Pulling Grip
- Pulling Gris offers excellent means to pull Electrical cable, bare conductors, Copper telephone Cable or ropes through Conduit
- Grips are made of high Quality galvanized Steel Strand to assure long life
| Product Code | Cable Diameter | Break Ton |
|---|---|---|
| AE SPG 049 | 8 - 15 | 0.8 |
| AE SPG 050 | 15 – 20 | 1.00 |
| AE SPG 051 | 20 – 30 | 3.00 |
| AE SPG 052 | 30 – 40 | 4.50 |
| AE SPG 053 | 40 – 50 | 5.00 |
| AE SPG 054 | 50 – 60 | 5.00 |
| AE SPG 055 | 60- 80 | 5.75 |
| AE SPG 056 | 80 – 100 | 6.25 |
| AE SPG 057 | 100 – 120 | 6.75 |
| AE SPG 058 | 120 - 150 | 7.50 |
Open Type Pulling Grip
- Open Type Pulling grip offers excellent means to pull cables from any point of the Electrical Cable, bare Conductor, Copper telephone Cable or Rope through Conduit
Grips are made of high quality galvanized Steel strand to assure long life
| Product Code | Cable Diameter (mm) |
|---|---|
| AE OPG 059 | 8 – 15 |
| AE OPG 060 | 15 – 20 |
| AE OPG 061 | 20 – 30 |
| AE OPG 062 | 30 – 40 |
| AE OPG 063 | 40 – 50 |
| AE OPG 064 | 50 – 60 |
| AE OPG 065 | 60 – 80 |
| AE OPG 066 | 80 – 100 |
| AE OPG 067 | 100 – 120 |
| AE OPG 068 | 120 – 150 |
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements
As manufacturer, we will endeavour to make the customer specification to suit your individual requirements

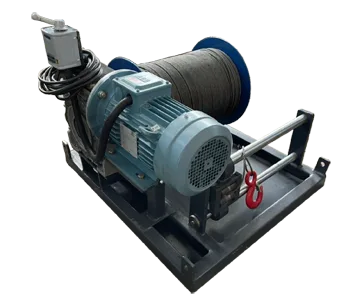

Pilot Winch
- Made of Heavy Duty Steel Construction
- Designed to pull the wire rope from the cable-pulling Winch to connect it to the cable drum housed on the other side of the trench
- Capacity of 100 Mts to 1250 mts
- Includes heavy duty Motor & gearbox at Rated Speed
Finish: Powder Coated according to RAL
| Product Code | AE PW 069 |
|---|---|
| Length (mm) | 880 |
| Width (mm) | 800 |
| Height (mm) | 680 |
| Weight (Kg) | 95 |
| Construction | Heavy Duty |
