Technical Specifications and Details

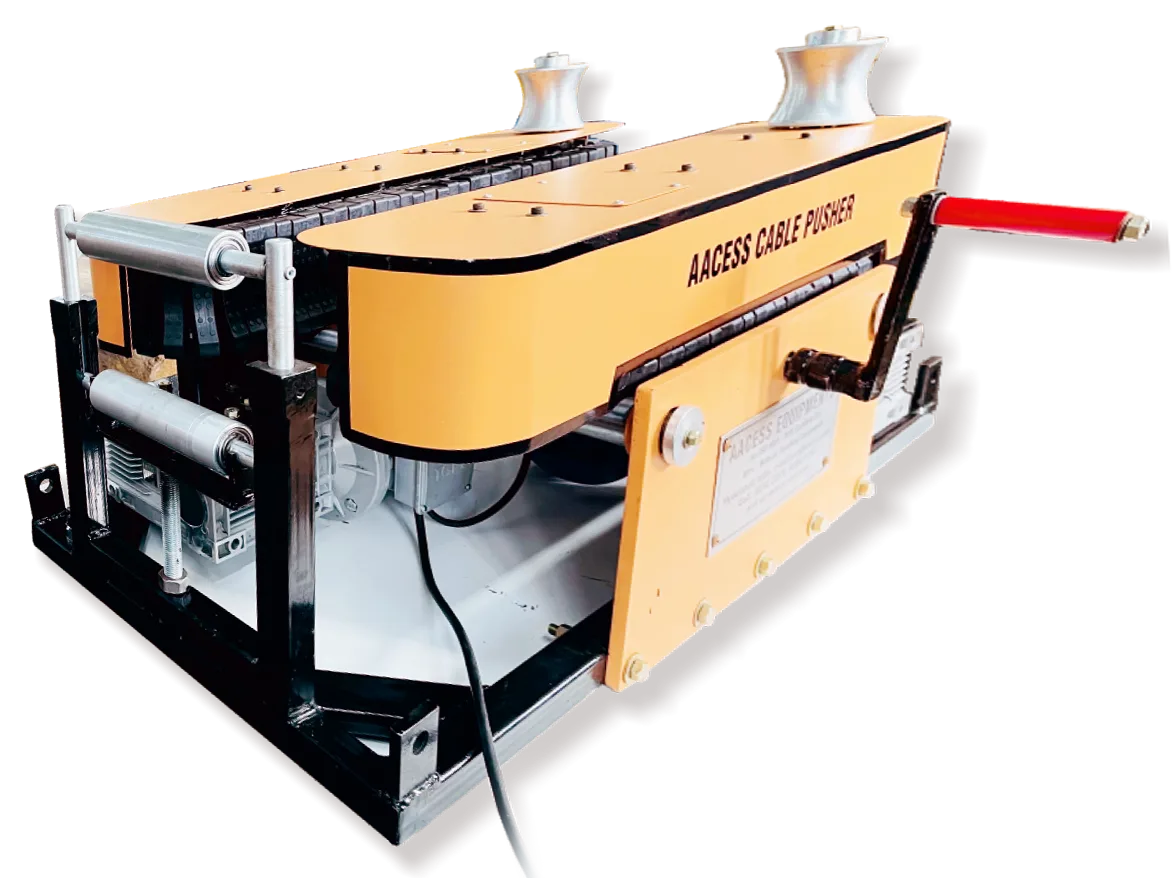

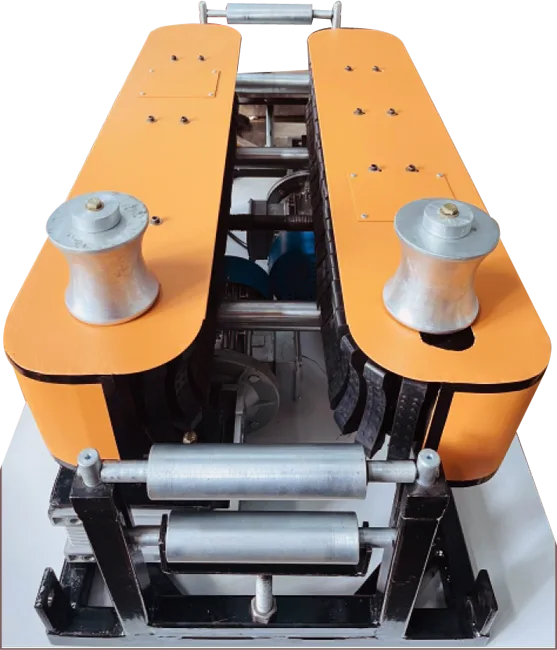

Aacess Cable Pusher is the ideal Solutions for providing mid assisting support between winch and the reel for pushing of underground cables in narrow ducts and open trenches. The Unit is electrically driven and comprises of a profiled drive system that consists of a pair of special split type segmented rubber transmission belts with steel plate reinforcement that guides the cable and pushes if further ahead. These two transmission belts are extremely elastic and hard, making it wear resistant, tough by providing constant friction white moving the cable.
The gap between the transmission belts can be adjusted for cable direction ranging between mm – 160mm according to the cable being Pulled. Owing to its compact size and design, Aacess Cable Pusher can be accommodated in smaller trenches and pits, thus avoiding premature cable cutting and unmated bends.
Aacess Cable Pusher work best, when synched with more cable pushers in parallel while being operated by the parent Aacess Cable Winch with an additional advantage of speed synchronization.
Performance Details
-
Electrically Operated Cable Pusher Unit
Compatible for
Outdoor Services
-
Model No.
ACP – 3000
-
Cable Pushing Capacity
30KN
-
Works at a Temp. of
55°C
-
Very compact size
1.2mtrs(L) x 0.6mtr (W) x 0.6mtr (H)
-
Max Dia of the cable Accommodate
160 mm
-
Max Dia of the cable Accommodated
50 mm
-
Max. Cable Pushing Speed
25 mts / min
-
Weight of the unit
270 Kgs
-
Weight of the Control panel
180 Kgs
-
Wire pendent Operated / Synchronized Operation
-
Synchronization of cable pusher unit with the cable pulling Winch
-
Synchronization of cable pusher unit with the other cable pusher
-
Special Split Type Segmented Rubber transmission belt with steel plate reinforcement used for cable pushing
Details of Control panel
- Control Panel is provided with a VVF Drive and a PLC unit for synchronization and a detachable pendant with a handle for carrying the panel.
